Air or Tire?

Revised April, 2012


What holds the vehicle up - the air or the tire?

Rather than tell you my answer, allow me to walk through a series of steps that illustrates what I think is going on.

The first step ought to be to define the problem:

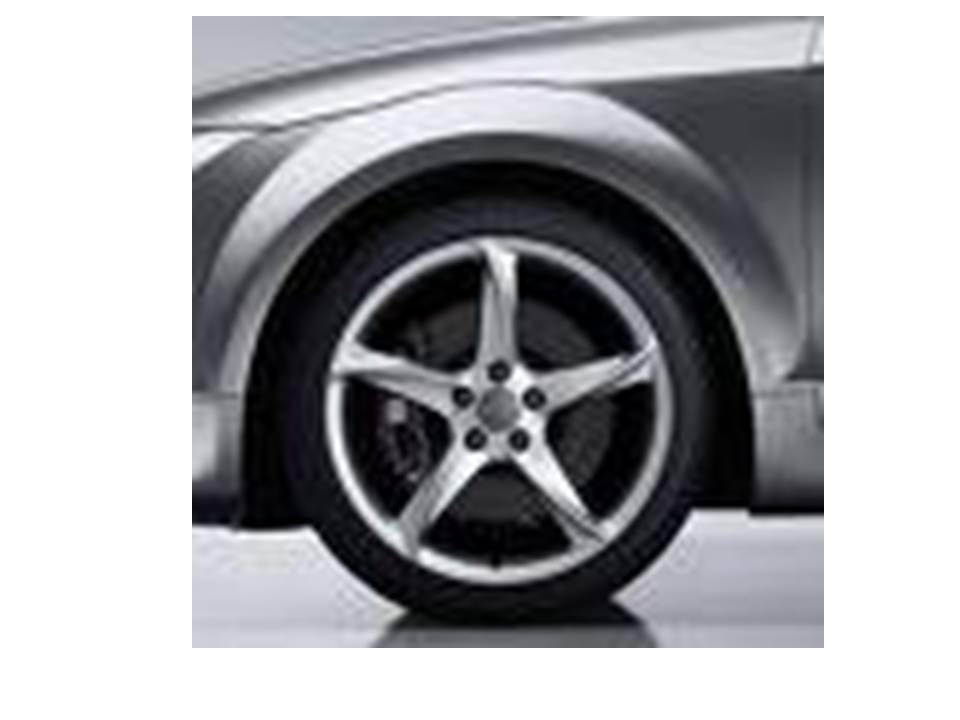

We have a vehicle and it has an inflated tire mounted on a rim, which is attached to the hub of the vehicle:

I've indicated the 2 forces that are acting on the area in question - an upward vertical force acting on the tire (the ground support) and a downward vertical force acting at the hub (the weight of the vehicle). For the purposes of this analysis, we'll neglect the weight of the rim and the tire. The weight of these components is small compared to the weight of the vehicle and doesn't affect the outcome.

Now let's look at the rim (wheel) and the tire.

The rim is attached to the hub and it is the only thing between the tire and the vehicle. The tire is the only thing between the rim and ground (except for the air inside the tire).

Looking at the rim, you can consider the rim to be a hoop of material (it's usually a metal of some sort - typically aluminum or steel) with a flange on both edges of the hoop so that the air pressure doesn't force the tire off the rim.

Let's ignore the tire for the moment - We'll come back to it later.

The hoop shaped rim has a width, but if we look at the rim edgewise, it is a circle with a connection to the hub. This connection is sometimes called the "spider" - and the "spider" and the rim together make up the wheel.

The rim is completely surrounded by air and the air is under pressure. That pressure is pushing inwards on the rim, as illustrated to the right

The pressure that is being exerted on the rim is the same completely around the rim. There is no pressure differential from left to right or from top to bottom. In other words, there is no sideways force being generated on the rim and there is no vertical force being generated on the rim (up and down). No net force at all - just a pressure towards the center.

But we know the rim is carrying the load of the vehicle, so there must be something that is resisting the weight of the vehicle (and the upward force of ground) - and there is only one thing it could be.

The tire.

The tire is carrying 100% of the weight of the vehicle (and, of course, the rim). The weight of the vehicle is distributed around the structure of the tire, so that adds very little to the weight that is already being carried.

If this is so, what are the implications?

First, it should be obvious that the size of the footprint (contact patch) would be loosely related to the load and the pressure. In other words, the area of the footprint is NOT the load divided by the pressure. The good news (for me at least) is that someone already did all the work:

Fact or Fiction?

Special Note: Long after I wrote this, I attended a seminar where a student from Cranfield University (UK) presented a paper that addressed the issue on the relationship between the size of the contact patch and the inflation pressure and confirmed what I wrote above. Unfortunately, the paper wasn't published at the time of the presentation, but I am citing it here in the hope that it will be published in the future:

Evaluation of the Contact Pressure Distribution of a Rear Combine Tyre on a Hard Surface by P. A. Misiewisc, et al, presented at the 28th Tire Society Conference in Akron, OH, USA, Sep 15 and 16, 2009.

******************************************************************

Revised April, 2012

In the July, 2011 issue of Road and track, they tested 3 high performance tires. They included some details about the tires - including the areas of the footprints at the same inflation pressure and load:

Road and Track - July 2011 - New Summer Rubber


Guess what?

The size of the footprints are different for each tire, even though they were measured at the same load an inflation pressure - and the average footprint pressure (load divided by the footprint area) does not equal the inflation pressure.

I'll leave it to the reader to do the calculations.

********************************************************************

Another implication:

We all know that the tire deforms in the area of the footprint - you can see the sidewalls bulging out.

But if the tire is supporting 100% of the load, then the axle might also be pulling down from the top.

To the left is a schematic of this, where the solid lines are the unloaded tire and the dotted lines are the tire supporting the load.

If the tire is doing all the support, then the entire tire is being distorted. The sidewalls near the footprint (contact patch) bulge out because the tread is being compressed towards the rim, but also, 180° from the contact patch (the "top" of the tire), the rim is pulling down from the tread. This should cause the section height to increase (which is why we are measuring Dimensions A and B), as well as the sidewalls to be sucked in a little (which is why we are measuring Dimension C).

And while I am at it, I am going to measure the circumference of the freestanding tire - and if my math skills haven't degenerated too badly - I ought to be able to match the diameter (Dimension A). As a side issue, I am going to keep the tape measure around the tire and measure the change when the tire is loaded. I am going to call all these measurements "perimeter" - since "circumference" seems to imply an undistorted tire.

I am going to predict that the perimeter measurement is going to get smaller with both load and inflation pressure.

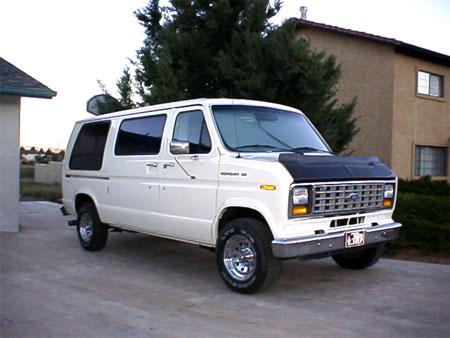

I am going to do these measurements using the rear axle of a 1987 Ford E-150, much like the one pictured to the right. The rear axle is solid (not independent) and that means I can use the center of the axle (where the differential is housed) to lift and lower the vehicle without inducing a tilt.

The van is also pretty heavy and lowering the inflation pressure is going to have more of an effect.

At the time I am writing this, the weather outside not suited for this activity, so I'll outline what I expect to happen, then document the actual results.

I'll take photos so you can see how I did it.

Prediction
Inflation Pressure Freestanding or Loaded? Dimension A - Overall Height Dimension B - Static Loaded Radius Dimension C - Section Width 180° from Contact Patch Dimension D - Section Width at Contact Patch Perimeter Dimension A minus Dimension B
35 psi Freestanding Diameter: Should be equal to the Perimeter divided by π Should be equal to Dimension A divided by 2 Dimension C and Dimension D ought to be the same Dimension C and Dimension D ought to be the same Circumference Should be equal to Dimension B
Loaded Smaller than the diameter This value should be extremely interesting Slightly smaller Significantly larger Slightly smaller Slightly larger
15 psi Freestanding Slightly smaller than 35 psi This should be equal to Dimension A divided by 2 Dimension C and Dimension D ought to be the same Dimension C and Dimension D ought to be the same Slight smaller than 35 psi Slightly larger than 35 psi, but equal to Dimension B
Loaded Significantly smaller than 35 psi Smaller than 35 psi Slightly smaller than 35 psi Significantly larger than 35 psi Slightly smaller than 35 psi, and slightly smaller than freestanding Slightly smaller than 35 psi, and slightly smaller than freestanding
Prediction
Inflation Pressure Freestanding or Loaded? Dimension A - Overall Height Dimension B - Static Loaded Radius Dimension C - Section Width 180° from Contact Patch Dimension D - Section Width at Contact Patch Perimeter Dimension A minus Dimension B
35 psi Freestanding Diameter: Circumference
Loaded
15 psi Freestanding
Loaded
