Rolling Resistance and Fuel Economy:
I once saw a study done by a vehicle manufacturer that said that tires consume 17% of the fuel consumption for a vehicle. Given the source, I assume that this is based on the EPA test used for determining the fuel consumption of a vehicle
Further, this 17% means not only rolling resistance, but also:
1) the tire’s weight contribution towards accelerating the vehicle (as well as the loss of energy caused when slowing down or braking),
2) the tire’s angular inertia involved in accelerating (and braking), and
3) the aerodynamic effects of a spinning tire.
While 17% sounds significant, what can be changed about a tire is going to be a fraction of that. I’ve heard people claim that they had significant mileage loss when changing tires. Interestingly, I have not heard anyone saying they got better fuel economy. I suspect a bit of exaggeration going on here.

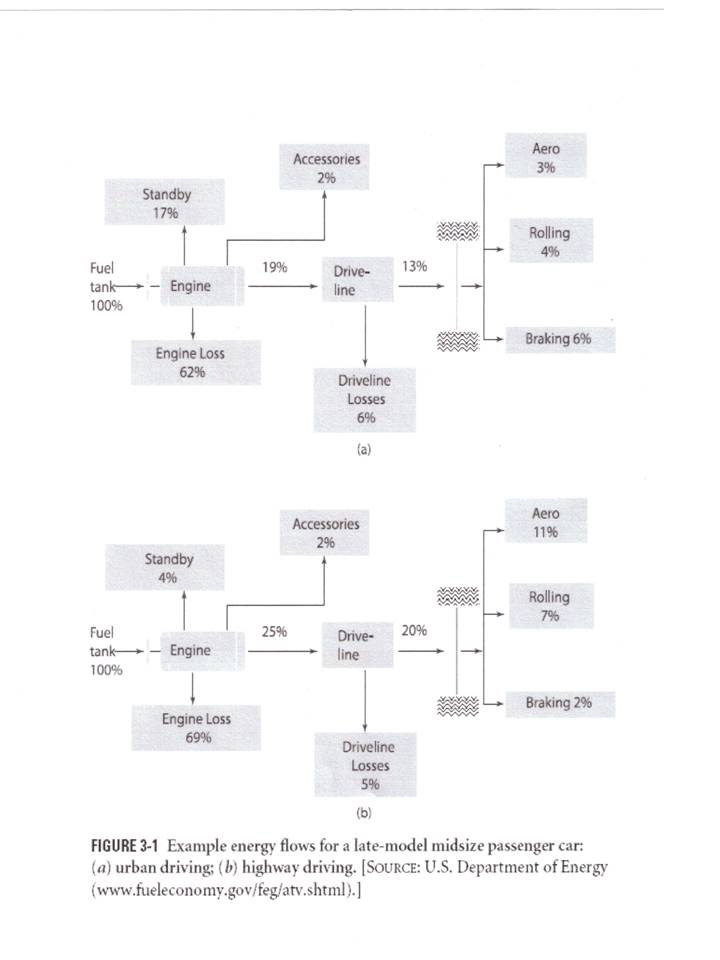

Below is a chart that is based on the EPA fuel economy test that says the rolling resistance in tires consumes between 4% to 7% of the fuel consumption for a vehicle. That’s significantly different than 17%, but those values seem low.
That chart came out of this:
If we assume the range of rolling resistance is as high as 60% (see the followup article for that data!), then the best that can be hoped for in improving fuel economy of a vehicle is between 2.4% and 4.2%. On a 30 mpg vehicle, that’s only 0.76 mpg and 1.26 mpg. That doesn’t sound right. I’ve heard many people talk about several miles per gallon.
For the purposes of this discussion, I am going to ignore the numbered issues listed above – and concentrate solely on rolling resistance.
Most rolling resistance is caused by internal friction of the rubber as the rubber moves through the footprint area. We call this “hysteresis”.
You can measure this in the form of heat generation, but that is difficult to accurately quantify this.
For this reason, special test fixtures are used – a Dynamometer, similar to the ones used during the EPA fuel economy test – that measure the energy consumed as a tire rotates.
There are several methods of testing rolling resistance. All these tests yield similar results – there isn’t much change in relative values between tires regardless of the method or test equipment – and certainly no changes in rank order.
But, they yield different numerical results!
So until there is a common, standardized test method, there will not be any rolling resistance values published by the tire manufacturers.
Just an FYI, there has been work to standardize the testing, so tire manufacturers can publish the rolling resistance of their tires. This is being lead by the California Energy Commission.
Since rolling resistance is caused mostly by internal friction of the tire, then there are a number of things that can be concluded:

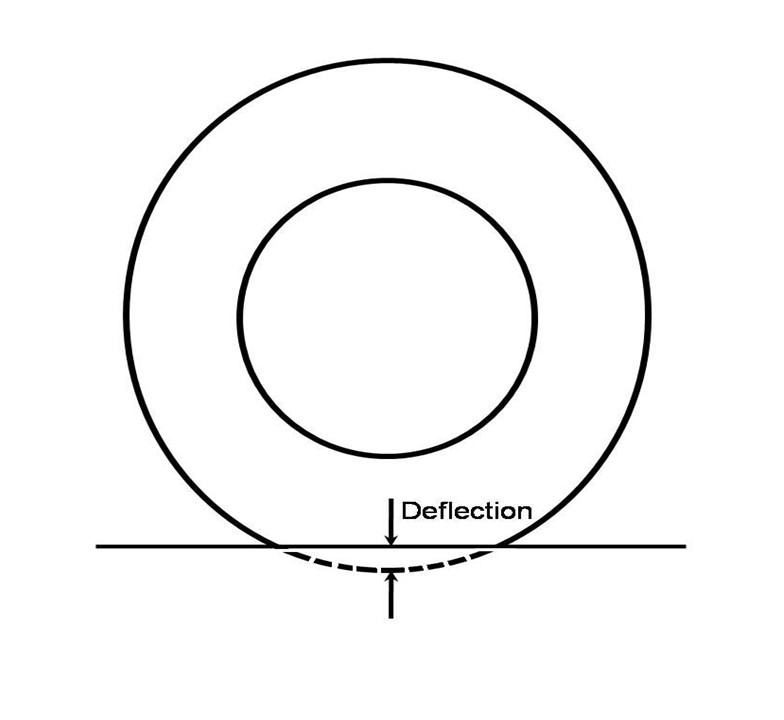

1) The more the tire deflects, the more the rolling resistance. This is more or less a “load vs inflation pressure” kind of thing.

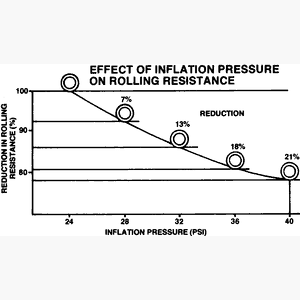

It ought to be obvious that as you add more inflation pressure, its effect on the deflection decreases – meaning that adding 1 psi over the placard inflation pressure has much more effect than the effect between 5 psi to 6 psi over the placard pressure.
2) The more the material in a tire – especially in the tread area – the more the rolling resistance.
This means that new tires are going to have more rolling resistance than otherwise identical, but worn out, tires. So when you buy a new set of tires, you should expect a loss in fuel economy.
This also means that all terrain tires, winter tires, mud and snow tires, and off road tires are going to have more rolling resistance than a comparable all season tire.
This also means that higher speed rated tires – with their additional cap plies – are also going to have higher rolling resistance.
3) The tread compound – and the amount of internal resistance the rubber has to movement – is going to have an effect on rolling resistance.
There are three properties that can be traded off with one another – Treadwear, Traction, and Rolling Resistance. You can maximize one of these properties, but it has to come at the sacrifice of at least one of the others.
This means that tires with good traction compounds have either sacrificed treadwear or rolling resistance (or both). This also means that tires with high UTQG treadwear ratings have sacrificed traction or rolling resistance (or both).
Vehicle manufacturers are keenly aware of this “triangle” effect, but since the EPA fuel economy number pasted in the window doesn’t, it is common for vehicle manufacturers to optimize towards low RR values, with an aim towards moderate traction, – and the result is poor treadwear. However, sometimes poor traction also occurs.
Poor traction and poor treadwear are common reasons cited as “proof” that OE tires are “cheap” and “poor quality” – and obvious I don’t share that opinion. I think it’s differing design objectives.
| Let me go a little deeper into tread compound. Rubber is not naturally black in color. The color you see comes from carbon black. Carbon black is quite simply the element “Carbon” – like coal, but without the impurities. This is the primary reinforcing agent in rubber and aside from the rubber itself, is the largest component in the mix. Since rubber is a hydrocarbon, carbon black is ideally suited as a point of chemical connection. Carbon black has been around for several hundred years, and its use is so widespread (more than just tires), that there are many, many types. In particular, the structure of a carbon black affects where it is suitable for. For ply skim, fine grained is best, but for tread wear, large grained and highly structured helps. However, this comes at the cost of internal friction. Silica (Yes, that’s right – sand!) is sometimes partially substituted for carbon black. But the silica used is highly engineered and would not be familiar to you beach goers. Please note that the word “sand” is usually used to describe particle size, not the particle’s chemical composition. So when I said “sand” above, I meant typical beach sand, which is mostly quartz – aka silica. Using silica in a tread rubber can get better wet traction (the important traction parameter) with little loss in the other parameters. So rolling resistance can be improved without sacrificing treadwear and / or traction by making compensating changes to the compound. However, these same techniques can be applied to generate even higher traction and better treadwear. Bottomline: If you are shopping for a tire with good rolling resistance so you get good fuel economy, I think you are wasting your time. The issue ought to be about saving money – and a tire with good treadwear will be a better value – you will buy fewer of them. Further – the easiest and most effective way to get good rolling resistance is to use higher inflation pressures – along with frequent inflation checks to assure that the pressure doesn’t drop much over time. I recommend 3 to 5 psi above the placard specification. Anything more than that starts to compromise traction – with decreasing effects on fuel economy – and in my opinion this compromises safety too much. A later addition: Apparently, the above paragraph has been interpreted to mean that I am advocating high pressures in tires. Let me be clear – I AM NOT!! I prefer a car that is crisp in steering. I am also willing to put up with the increase in ride harshness. and it does help fuel economy. But under no circumstances am I advocating the use of inflation pressures higher than what is written on the sidewall (with the exception of tires with 35 psi max. on the sidewall – and there’s a long story there!) Plus, one of the lessons learned from the Ford / Firestone situation in August of 2000 was that car manufacturers could have done a better job of selecting tire sizes and inflation pressures – and in many instances, they have stepped up and increased tire sizes. (A thank you for those folks who did this!) So there should be emphasis placed on the vehicle placard. |
